Description

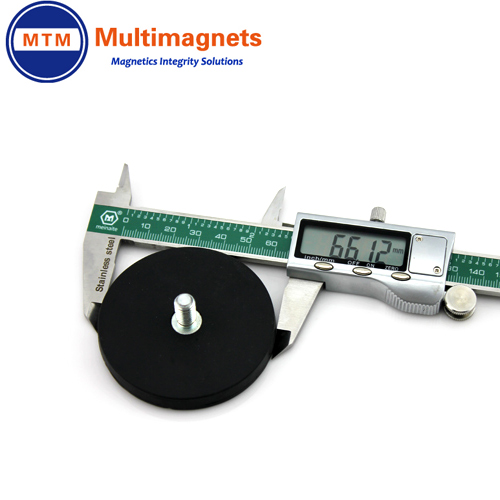

D66 rubber coated pot magnet with gray color details:
1.Size: D66*8mm
2.Material: 6 pcs of small disc neodymium magnet, steel and rubber
3. Color: available to customize
4. Pulling force: standard is 20-25kg, available to customize
5. Thread: M5, M6, M8, 1/4-20
6. Logo: available to add
7. Pakcage: gift pacakge
This rubber coated pot magnet is good idea as mounting bracket to mount camera, lightbar .
To make pot magnets used in more special conditions, people often need rubber coated on pot magnets, so that rubber coated pot magnets appeared on the magnetic products market and used more and more as a magnetic base or magnetic holder. This rubber coated pot magnet even just called as rubber coated magnets shortly.
The rubber coated pot magnets are assembled with strong neodymium magnets, for bigger size of rubber coated pot magnets are made of several disc neodymium magnets inside (6 pcs of neodymium magnets for D43 & D66 size, 12pcs of neodymium magnets for D88 size ). so that the whole rubber coated magnet is a well-designed magnetic system.
Compared with normal pot magnet, the rubber coated pot magnets have many more advantages:
The bottom surface of rubber coated pot magnet is soft, so it won’t make any damage to other contacted objects;
After rubber coated, it is waterproof, which is better to use in underwater and give the longest working lifetime.
This rubber coated pot magnet usually used for mounting the Modus platform, lighting, cameras, just about anything you can think of putting on a metal surface.
The rubber coated pot magnet also can be screwed with rubber handle that plays a fixing tool in the process of automotive color changing and film and protect the paint from external damage. Equipped with a handle, the rubber coated magnetic sucker is more convenient to be used.
As a professional supplier of magnets & assemblies, Multimagnets offer round and rectangular shape for sales and different colors are available for the rubber coated magnetic bases with handle.
These rubber coated Neodymium (NdFeB) pot magnets are especially suitable for magnetically fixing objects such as advertising displays or safety blinkers onto car roofs (the metal work must have a mild steel content - aluminium or carbon fibre surfaces will not work). The rubber coated Neodymium (NdFeB) pot magnets are also suitable for fixing signs, plates, temporary lightings and sample parts scratch-free onto highly polished chrome-plated or painted mild steel (ferrous) surfaces.
The rubber coating also provides a good level of corrosion protection in humid conditions. Because of their high performance, slide resisting properties and paint work protection ability, these rubber coated Neodymium (NdFeB) pot magnets are sometimes also known as Boutique Magnets.
Two versions are available:
Threaded neck (external male threaded stud) - you could attach a nut to this design style;
And Screwed bush (external female threaded bush) - you could attached a bolt to this design style.
Following is our list of standard rubber coated magnet for your reference, other sizes are available to customize as well, contact us to get teh custom design.
